LOA w/o Engine 39'
LOA w/ Engine 42'2"
Beam 12'
Draft Hull Only 32"
Draft Engine Down 46"
Deadrise at Transom 25°
Transom Height 30"/35"/30"
Dry Weight Standard w/ Engines (approx) 19,600lbs
Weight w/ Options, Fuel & Water (approx) 25,520lbs
Max HP Capacity 1,350HP
Fuel Capacity 600 gal
Water Capacity 50 gal
Livewell Capacity 80 gal

Bridge Clearance to Hardtop 8'6"

Bridge Clearance to Radar 15'1"

CONSTRUCTION

Unsinkable

Lifetime hull warranty and 3 year component warranty

Variable deadrise deep v-hull

Patented closed molded RAMCAP® construction process

NMMA Certified

Self-bailing cockpit

No wood construction

High density, closed cell, structural foam flotation

Hull laminate - premium gel coat, vinyl-ester barrier and knitted bi-axle fiberglass

High density composite transom

Hull liner and deck mated perfectly for a rigid one-piece construction, adding to its long term durability

Hull liner completely finished inside

Molded-in diamond non-skid

Rigging troughs - molded-in and oversized for easy access

ABS backing used to receive self tapping screws and bolts

Aluminum framework fabricated in-house, sand blasted then powder coated using premium marine grade materials

Wire harnesses - manufactured in-house using marine grade materials

Circuit protection - circuit breakers or fuses protect all electrical circuits

Heavy-duty rub rail with 316 stainless steel insert and end caps

316 cast stainless steel and chrome plated fasteners for additional corrosion and stain resistance

All hardware bedded or gasketed to resist corrosion

Heavy-duty, welded bow and stern eyes, bedded and sealed in polyurethane

Bronze high speed intake strainers

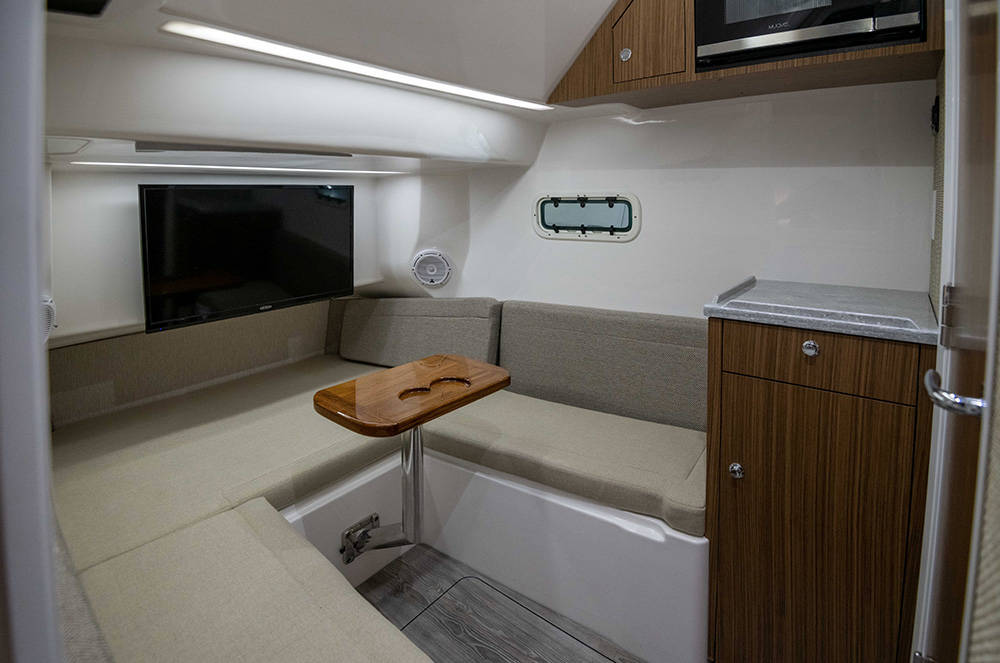

CABIN

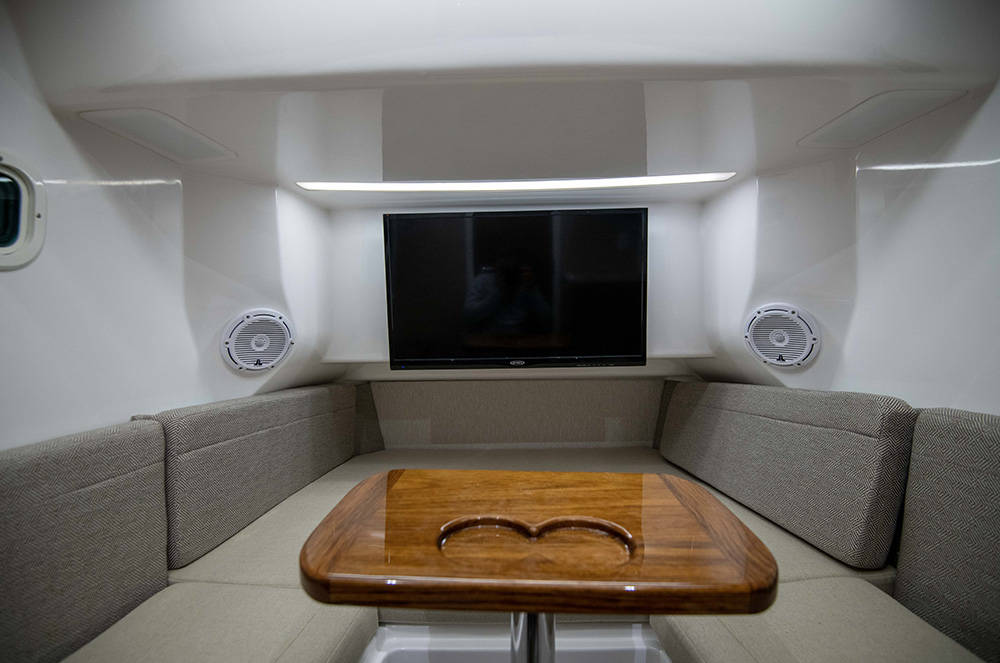

U-shaped cushioned seating with actuated backrest

Full length bunk with filler cushion and storage to create oversized sleeping area

Wood grained storage cabinet with door, solid surface top and storage drawer

Microwave with wood grained cabinet, storage door and keeper rail

Wood grained stairs with finished wood treads and storage cabinet

Finished flooring with bilge access hatch

Lockable cabin entry door with stainless steel hardware

8K BTU Air conditioner

LED Lighting

Opening port lights (2)

Overhead glass skylight with 76" of standing headroom beneath

Carbon monoxide detector

AC/DC Main distribution panel

110VAC 30A Electrical system

32" Flat screen LED TV with remote




ENCLOSED HEAD

Lockable wood finished door

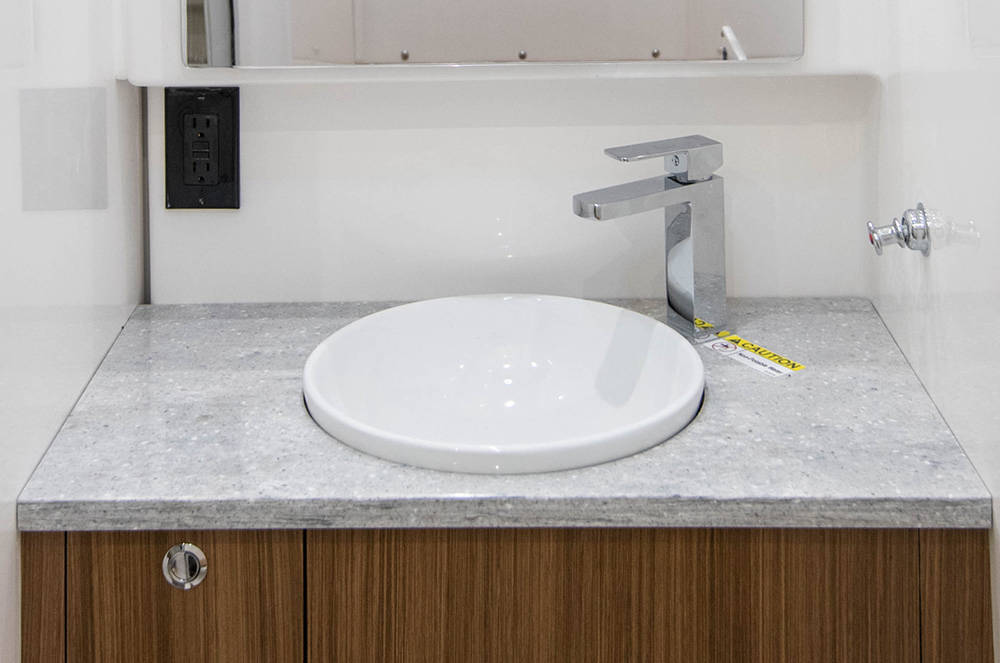

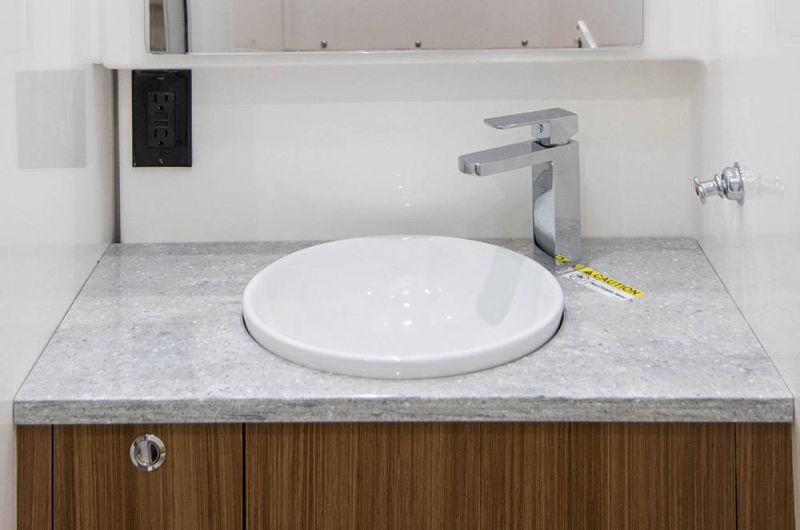

Wood grained vanity cabinet with solid surface top, bowl style sink, stainless steel faucet, two pull out storage drawers and opening storage cabinet with stainless steel hardware

Mirror

Opening port light

Rain style shower with 76" of standing head room beneath and a teak shower grate floor

Water heater - 6gal

Toiletry storage compartment with acrylic door and stainless steel hardware

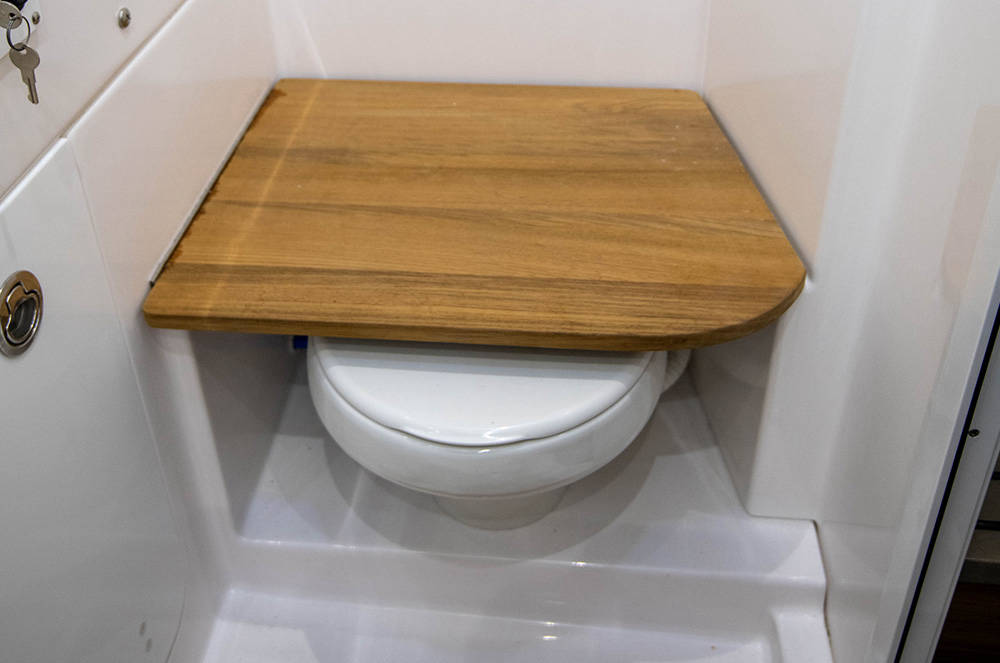

China-bowl head with folding teak cover, macerator and 17gal holding tank

LED Lighting

CONSOLE
Option



CONSOLE

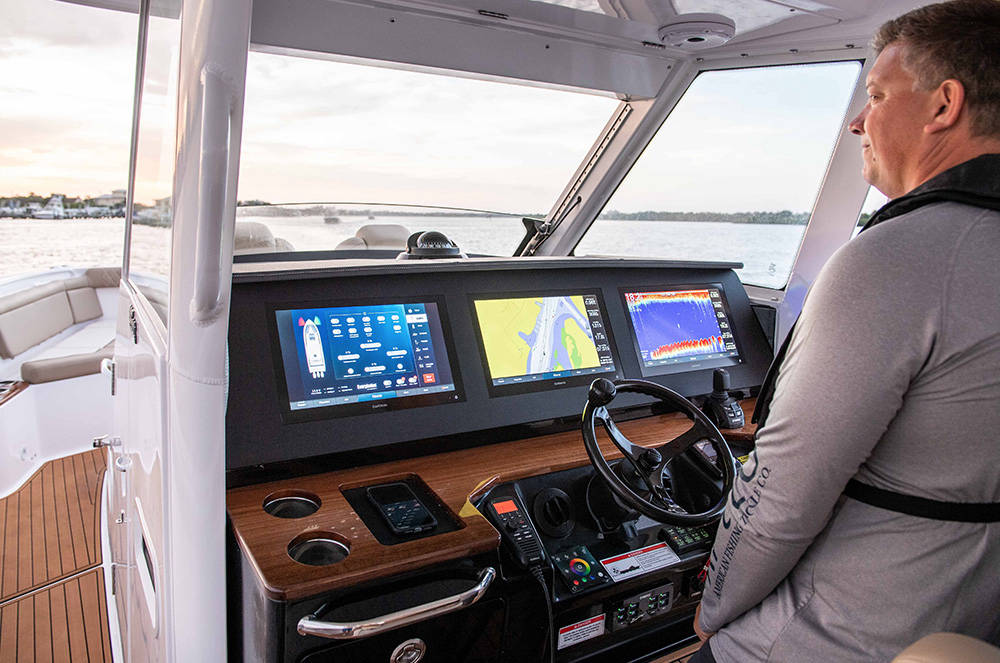

Oversized electronics mounting area for triple 16" flush mounted displays

Garmin digital switching system with touch screen system control

Patented hydraulic sliding windshield with tempered glass and intelligent wiper & washer system

Tilt out personal items storage compartment

Tilt out switching panel with USB charger

Stainless steel handrails

Stainless steel cup holders with drainage (4)

Recessed storage area with inductive cell phone charger

Compass

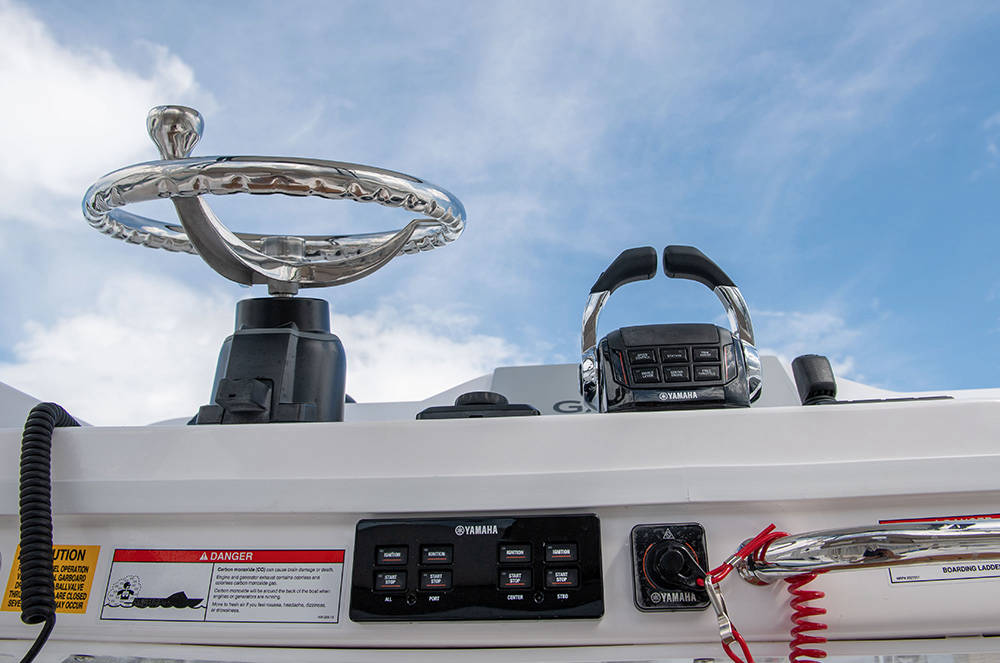

Centerline mounted adjustable stainless steel steering wheel

Wrapped stitched visor with recessed personal items storage area

Molded-in fiberglass footrest with mat and folding visibility platform

Helm Air conditioning with adjustable discharge vents (2)

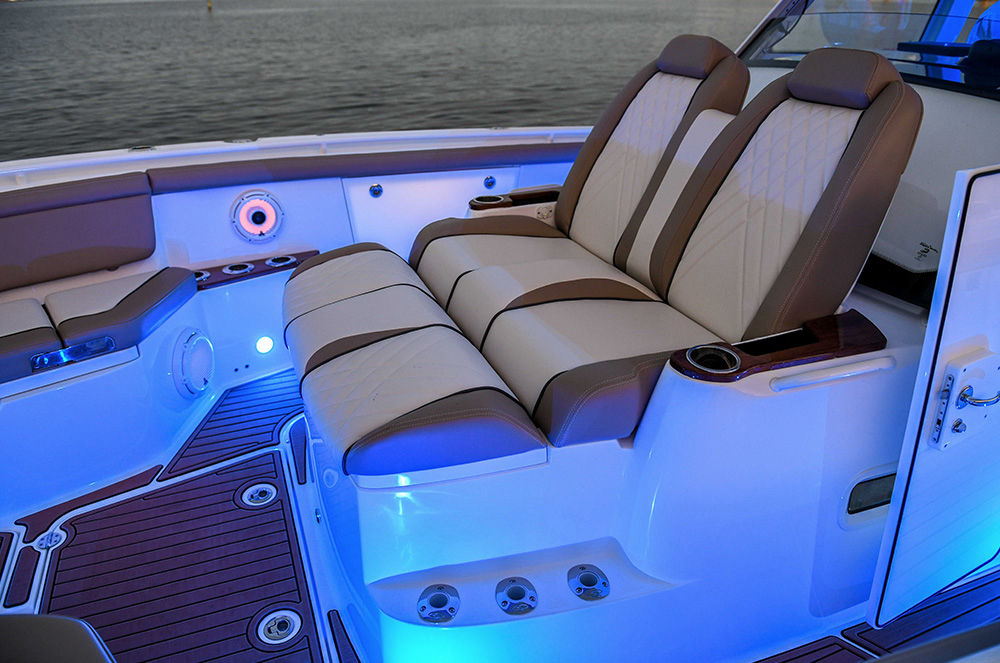

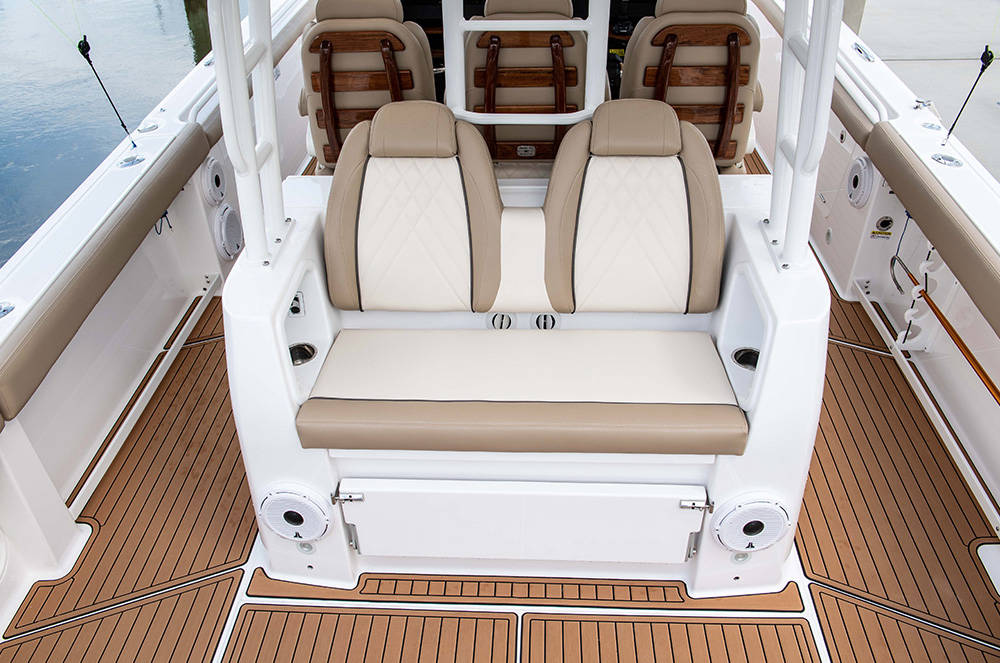

Forward facing double lounger seat with armrests, cup holders, grab rails and USB charger

Vertical stainless steel rod holders (6) with drainage

Insulated storage compartment (87 quarts) with opening lid, hardware and drainage



HARDTOP
Fiberglass hardtop with non skid and dedicated electronics mounting surfaces

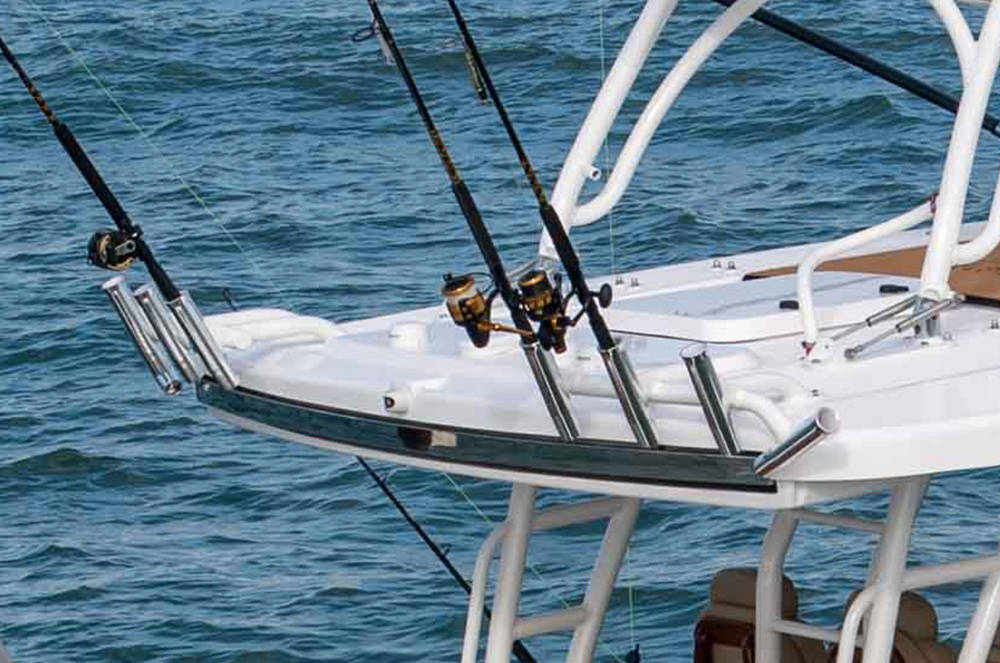

Hardtop mounted rod holders (6) with angled kingfish style rod holders (2)

Molded in hard top hand holds with integrated water management

Integrated heavy duty aluminum powder coated frame with hand rails

Access hatch with opening lid and hardware

Overhead skylight in hard top (eliminated with 2nd station option)

Aluminum powder coated ladder

Heavy duty aluminum powder coated aft supports with integrated hand rails

LED spreader lights (5)

Full spectrum flush mounted LED overhead lights (4)

Flush mounted red LED overhead helm lights (2)

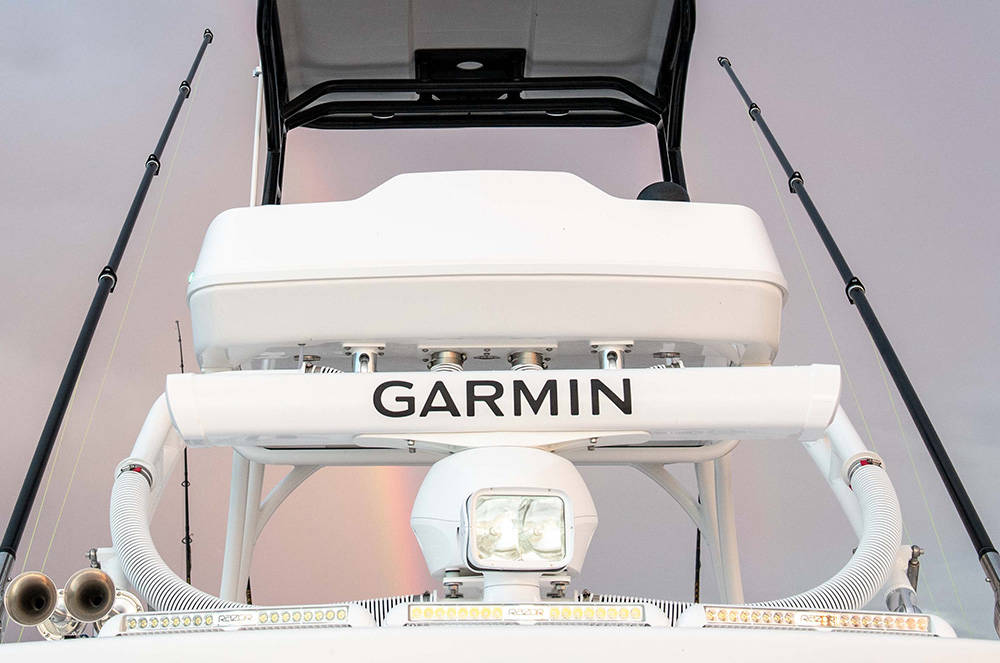

Actuated remote controlled spotlight

Hinged access to electrical connections

Stainless steel dual trumpet air horn



DECK / COCKPIT

Gyroscopic stabilizer Seakeeper 3

35lb Stainless steel plow anchor with 300ft 5/8 - 8PLAIT & 15ft 5/16 chain with swivel

Electric windlass with remote, tool storage, integrated through the stem anchor chute & stainless steel cleat

Fresh and raw water washdown

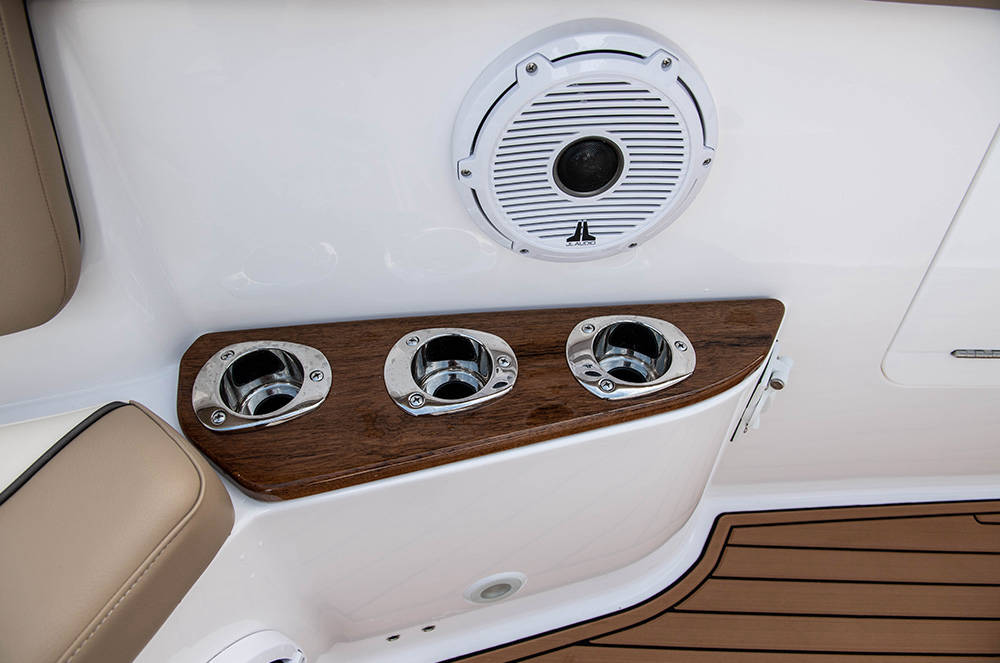

Premier audio package - Fusion 770 control head with Bluetooth & JL M-series speakers, JL amplifier and subwoofer

Full spectrum LED lights

Anti-Fatigue helm pad - mocha or storm gray

10" pull-up cleats cast 316 stainless steel & through bolted (6)

Oversized cockpit drains with stainless steel grates

Low profile aluminum powder-coated bow rails

Powder-coated toe rails

Flush deck mounted electrically actuated table for bow seating

Combination rod and cup holders (11)

Stainless steel water, waste, gasoline and diesel deck fitting

Retractable boarding ladder at transom with stainless steel grab rail

Side utility door with integrated gate and oversized stainless steel hardware

Bilge access hatch with stainless steel hardware and drainage

In gunnel storage compartments (4) lighting and drainage, mesh nets, collapsible ladder with dedicated storage and dock line holders

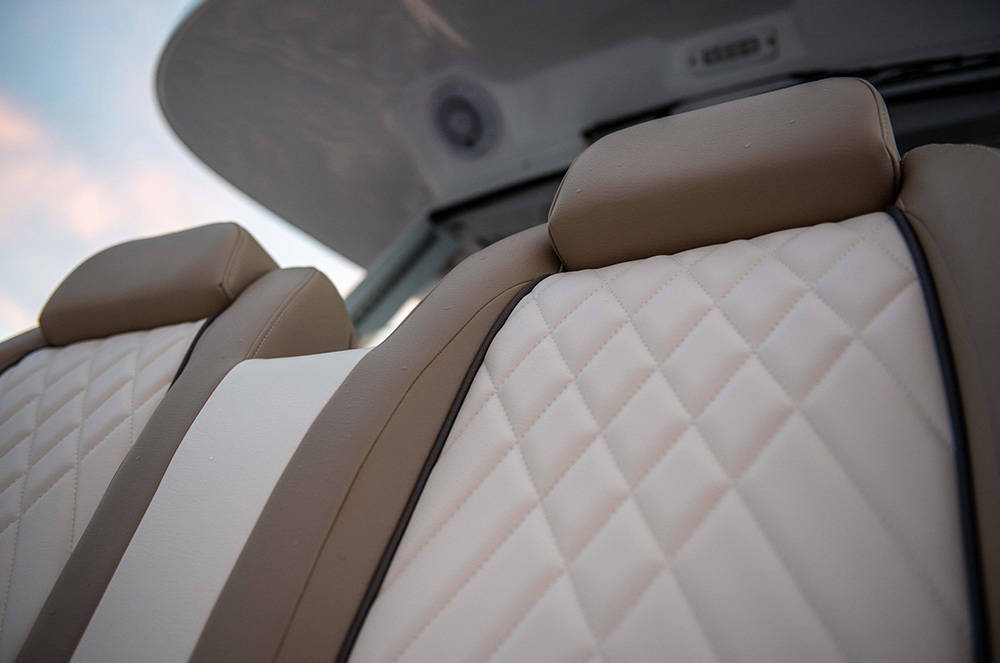

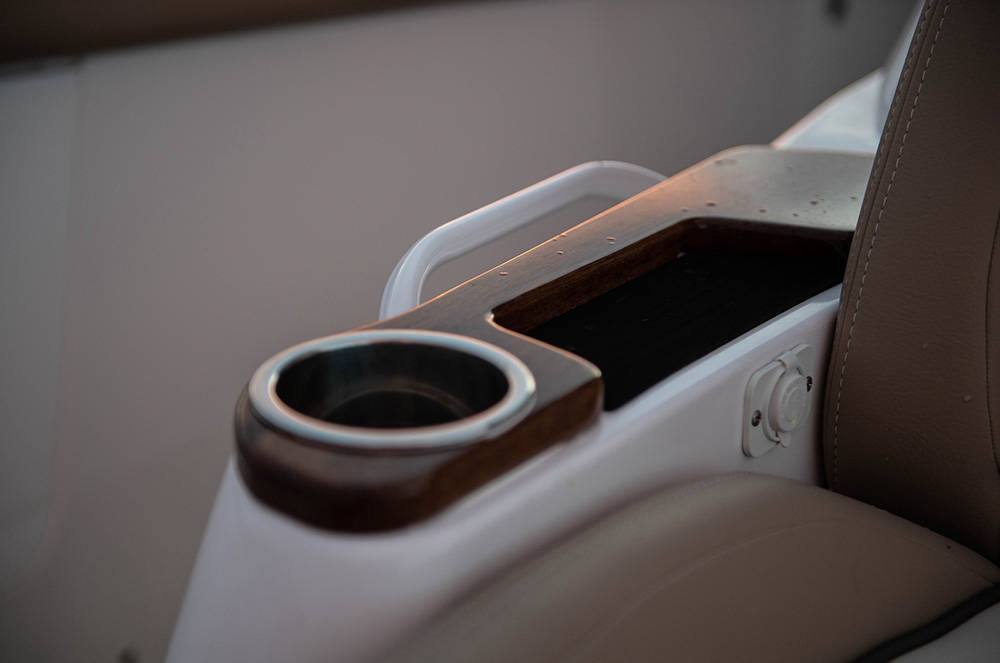

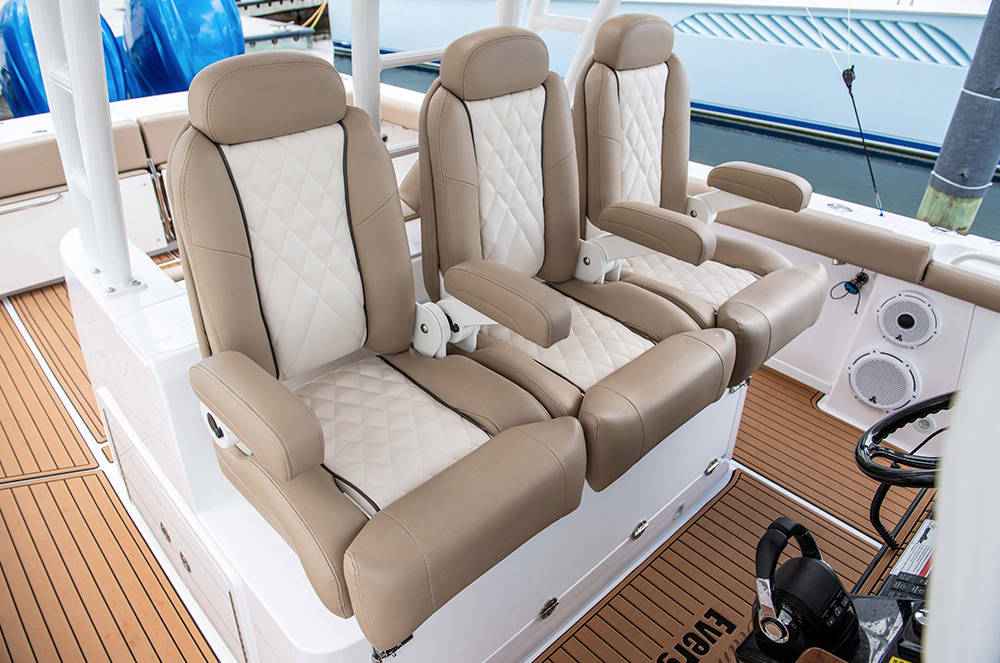

Triple Pompanette helm seats with armrests and adjustable bolsters

Coaming bolsters around the full perimeter of the deck

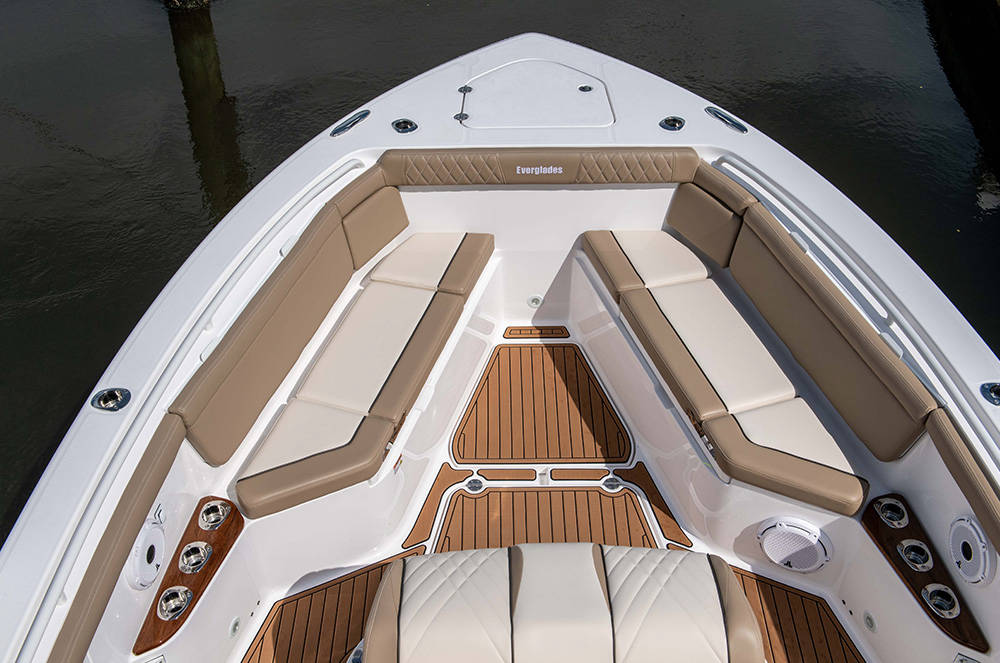

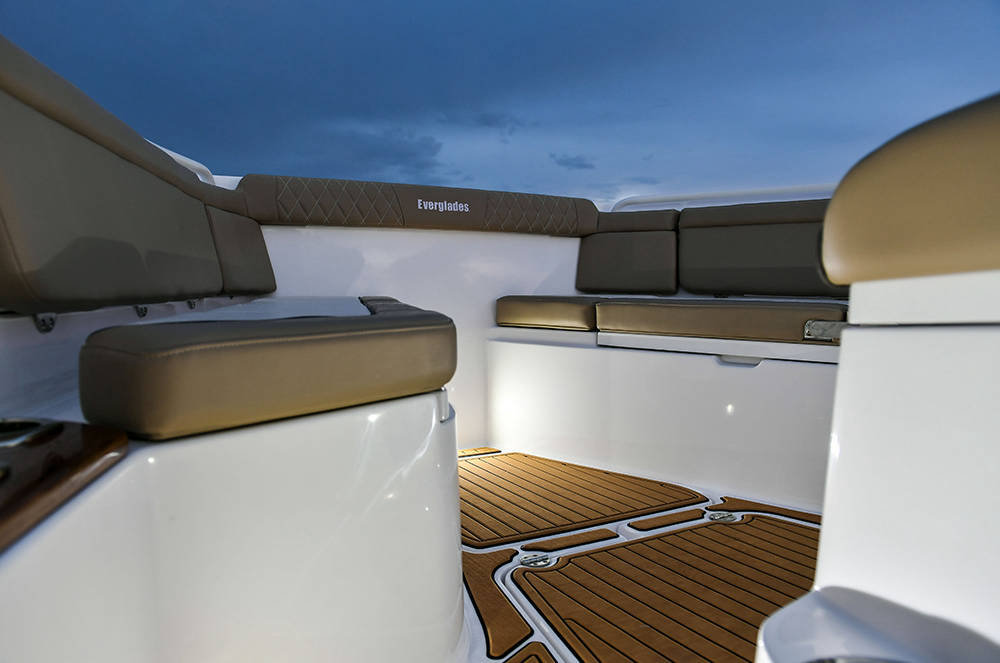

Cushioned bow seating with articulating backrests port and starboard

Insulated bow seating storage tubs port and starboard with opening lids, lighting and drainage

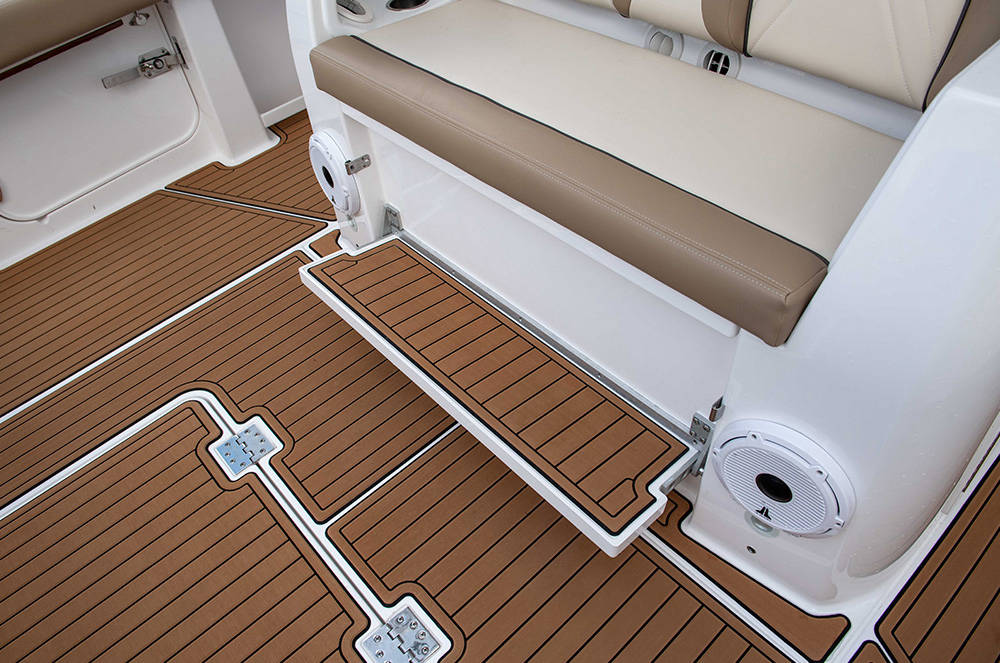

Folding cockpit seats across full beam of transom


MECHANICAL & ELECTRICAL


Automatic bilge pump: aft (2) - fwd. (1) 3700 GPH

Sump for gray-water system

High-water alarm

LED full spectrum lighting

LED anchor light & navigation lights

LED docking lights

LED courtesy lighting

LED underwater Lights

Remote controlled spotlight

Engine starting battery bank with charging system

House battery bank with charging system

Freshwater tank - 50gal

Zipwake Trim Tabs with automatic trim control

Generator - Fischer Panda 5kw Diesel - 17gal

50' - 30 amp shore power cord, smart plugs

Stainless steel Manifold Seawater pick up with four pump capacity, shut off valves and thru hull with seacock



MEZZANINE
Personal item storage drawers (2)(Eliminated with shock mitigating helm seat option)

Folding visibility platform with mat

Sink with lid and folding faucet for fresh hot and cold water (replaced with rigging station option)

Trash can with lid (replaced with rigging station option)

Integrated pull out shower for fresh hot and cold water

Elevated aft facing seating with folding footrest, cup holders (2), USB chargers (replaced with rigging station option)

Insulated storage tub (30 gal) with opening lid, lighting and drainage (replaced with rigging station option)

Full spectrum LED flush mounted lights (2)

Single level cockpit with unobstructed 360- degree perimeter access
Pressurized circulating livewells (2) at 40 gallons each with redundant pump, opening lids with clear acrylic windows and hardware
Insulated fish box in floor (fwd.) with pump out
Insulated in deck fish box with opening lid, hardware, lighting and drainage - 112 gal
Insulated transom fish box with dividers, opening lid, hardware and drainage - 75 gal
Under gunwale power ports - 30A (2 aft)
Under gunwale rod and gaff storage racks
Forward in gunwale rod storage compartments with doors (2) hardware, lighting and drainage
Total rod holders (39)

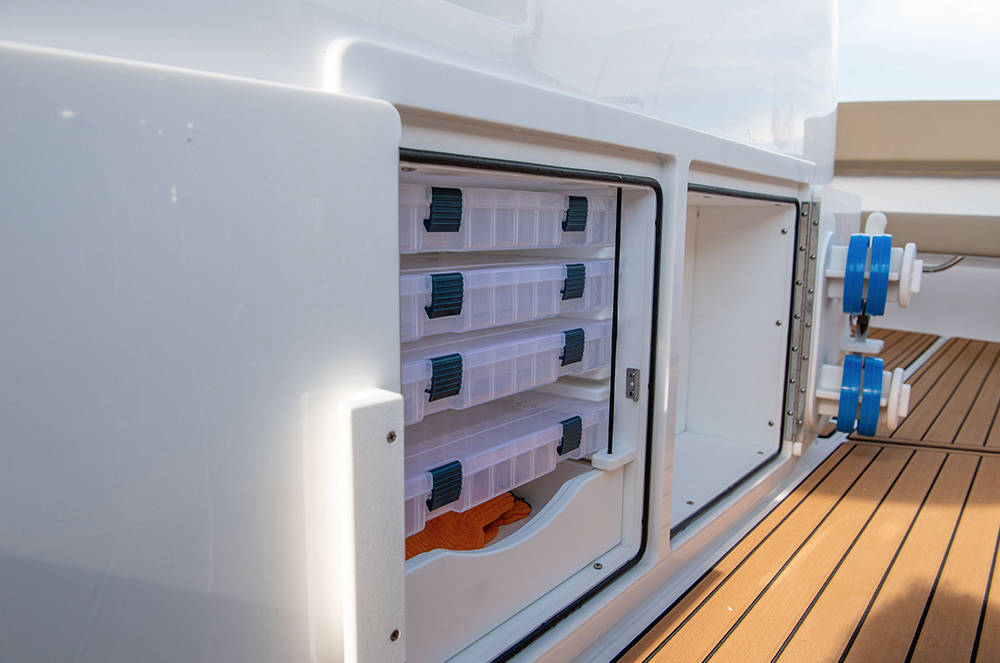

Tackle storage compartments port and starboard with doors, (5) storage drawers, (9) tackle trays, dedicated leader spool and tool storage (starboard tackle storage compartment replaced with rigging station option)
Outrigger quick-cam cleats
GEMLUX® Carbon-fiber outrigger package - 22' poles
Hinged rigging station integrated into the aft fish box with dedicated mounting points on the transom lids

Custom painted engines

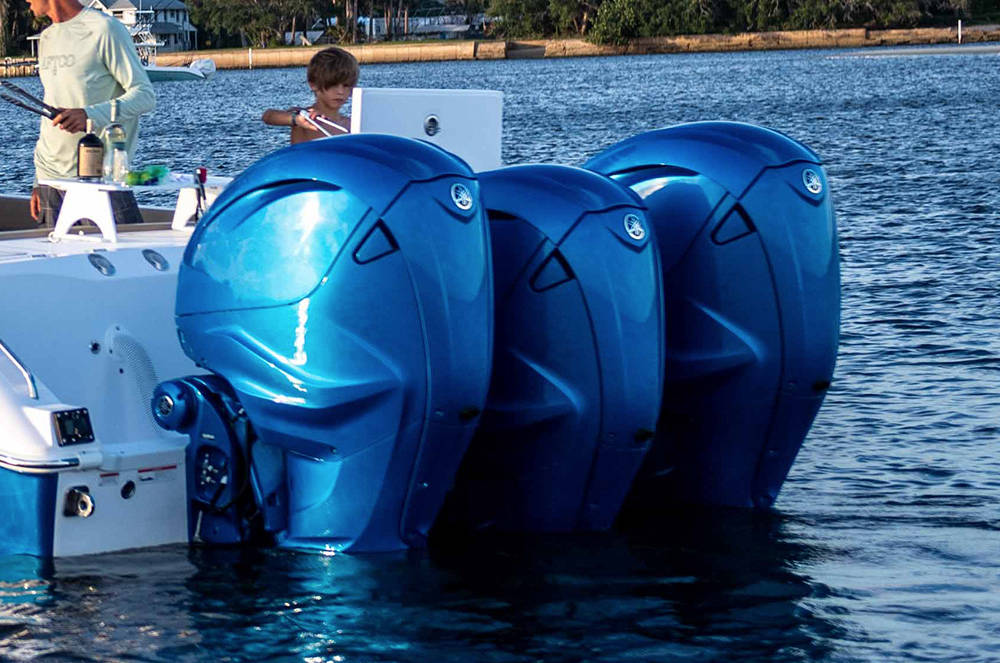

Quad Yamaha 425hp (standard with Helm Master EX)(standard Yamaha White)

OPTIONS
Light bar (deletes spotlight)

Rigging station: Includes drawer style refrigerator/freezer, dedicated leader & tool storage, removable cutting surfaces, freshwater sink with sprayer, cup holders, tackle storage drawers, 5 gallon bucket with dedicated storage (replaces aft mezzanine)

Freezer package for Mezzanine seat & aft box (aft fish box only if rigging station option is selected)

Air conditioning for Mezzanine seat and Helm seats (helm seats only if rigging station option is selected)

Light Package - Upper station

JL M6 Series LED Speaker upgrade

Teak accent (bright finish) at helm area

Interior high gloss teak table with pedestal and storage

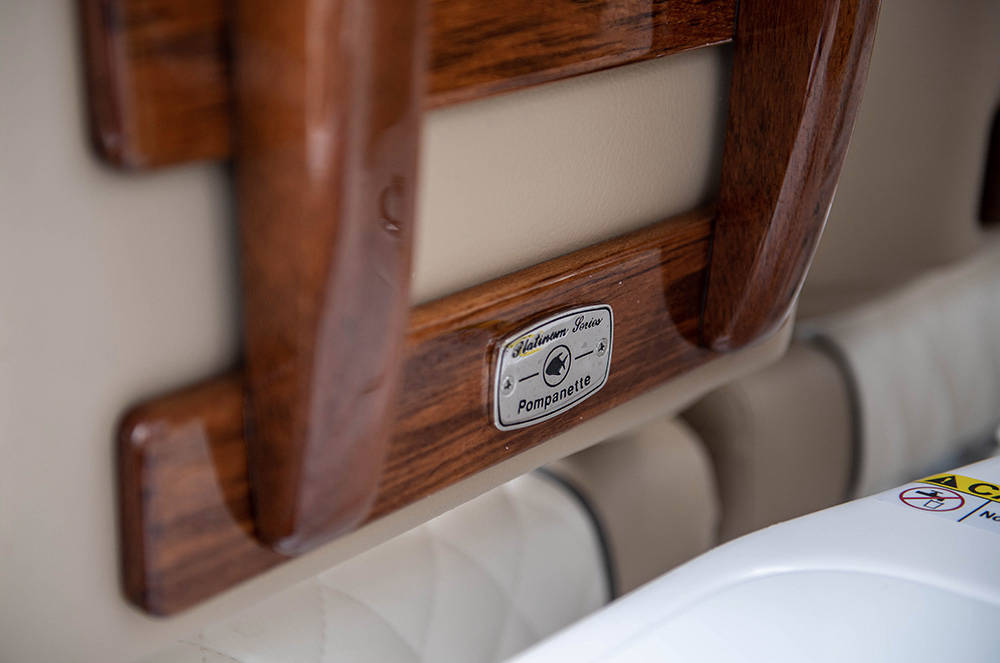

Teak ladder back triple helm seat

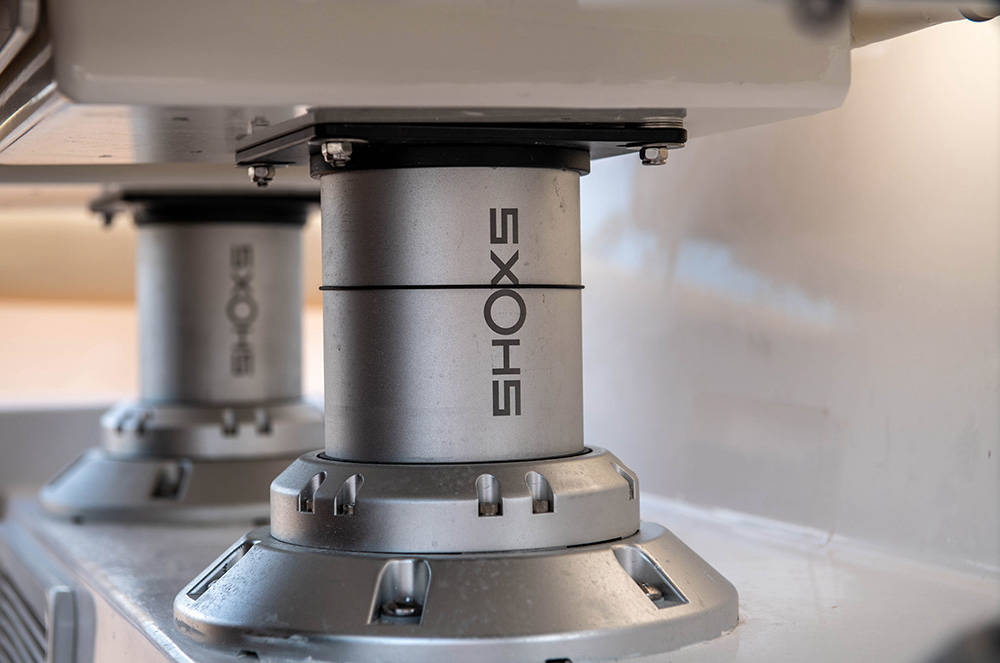

Shock mitigating helm seat pedestals (3) SHOXSX4 - Replaces two storage drawers under helm seats

Stainless steel quick release fender pins (6)

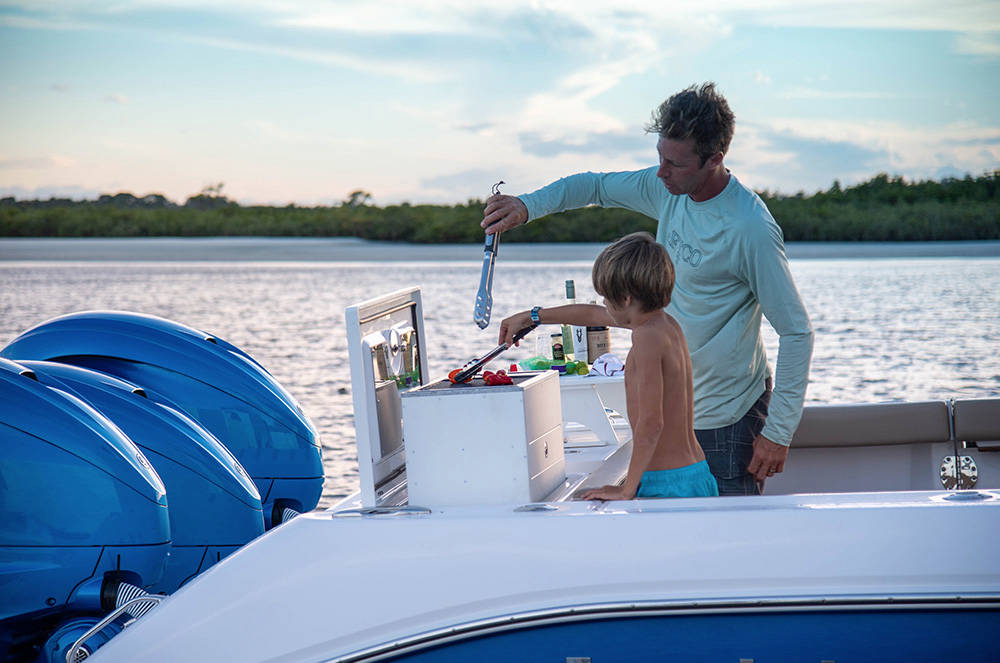

Grill, Electric with actuated with storage drawer - (replaces starboard livewell)

SeaDek Flooring

Under gunnel power ports - 30A (two additional in bow area)

Tower Mounted Marsh Tacky Outriggers

Automatic Engine Freshwater Flush System

Carbon Fiber Steering Wheel

Full Upper station: sun-top, drink holders, folding helm seat bolsters, stainless steel grab rail, glove box, Garmin GHS 11 wired handset, Garmin 8616 Additional screen

CANVAS & UPHOLSTERY
Upholstery colors: solid white, almond accent, or flagstone accent

Canvas colors: black, blue, silver, tan and white

Canvas package - helm seat cover, forward console seat cover, console cover, mezz seat cover & bow seat covers

Second station seat & console cover

Cockpit cover

Mooring cover

Retractable cockpit sun shade - white

Mediterranean bow shade - white

GEL COAT & PAINT
See your local dealer for an Everglades Awlgrip® paint chart

Premium powder coating to match hull color (gelcoat only)

Black powder coating (Paints radar and satellite)

Everglades Hull Colors

Automatic bilge pump: aft (2) - fwd. (1) 3700 GPH
Sump for gray-water system
High-water alarm
LED full spectrum lighting
LED anchor light & navigation lights
LED docking lights
LED courtesy lighting
LED underwater Lights
Remote controlled spotlight
Engine starting battery bank with charging system
House battery bank with charging system
Freshwater tank - 50gal
Zipwake Trim Tabs with automatic trim control
Generator - Fischer Panda 5kw Diesel - 17gal
50' - 30 amp shore power cord, smart plugs
Stainless steel Manifold Seawater pick up with four pump capacity, shut off valves and thru hull with seacock

Garmin Premium Package: VHF 315, Transceiver AIS 800, Triple Displays GPSMAP® 8616xsv Chart plotter, Chirp Transducers B175H & B175L, Radar Fantom 54

Pocket Transducer PM265LM Chirp Airmar with Deep Water capabilities - Replaces Garmin BH175H and BH175L chirp transducers if premium package is also selected

GXM 54 SiriusXM marine weather receiver & audio (requires subscription)

KVH5 Satellite TV (requires subscription) includes receiver, antenna, (1) Direct TV connection box with remote wired to Garmin

Triple 425XTO

.
