The All-New 455cc Flagship
Every new model launch is important, but this is one of the most significant unveilings in our history. Introducing the 455cc flagship model. A model of firsts. Revealed in this, our platinum anniversary year, the 455cc is a testament to our 20-year history of unyielding innovation, time honored design, and uncompromising fishability.
The 455cc is a flagship of control and technology. Our largest command center to date, the helm allows you to control everything - literally. Integrated into the vessel’s central nervous system with the assistance of Garmin’s Advanced Electronics Engineers, three massive Garmin touchscreen monitors provide continuous access to a full array of information and control features.
Yet the 455cc is no showboat. Our fishing DNA is inherently designed into the 455cc’s deck plan to get you on top of prey quickly and fish hard. From strategically placed gear drawers and rod holders to our first ever in-floor fishboxes, the 455cc is first and foremost a hardcore, unapologetic offshore fishing machine.
Adorned in beautifully crafted materials and exotic woods, the 455cc will let guests and passengers know that you have arrived. It transcends typical marine appointments with impeccable fit and finishes that includes high-quality leather-like upholsteries, above and below deck climate controls, rich-looking wood accents, and supportive triple Release Marine® helm seats. Overnights and weekends come standard with a generous king-sized convertible bed, galley space, and separate head and shower facilities.
• The longest, widest flagship in our history
• Largest command center in our history
• Second row Garmin monitors for passengers
• Technologically advanced Garmin control system
• Standalone head and separate shower
• In-floor fish boxes, port and starboard
• Dual port and starboard dive/utility doors
LOA w/o Engine 45'
LOA w/ Engine 48' 8"
Beam 13'3"
Draft Hull Only 35"
Draft Engine Down 50"
Deadrise at Transom 25°
Transom Height 25"/35"/35"/25"
Dry Weight Standard w/ Engines (approx) 28,000 lbs
Weight w/ Options, Fuel & Water (approx) 33,500 lbs
Max HP Capacity 1,800HP
Fuel Capacity 683 gal
Water Capacity 100 gal
Livewell Capacity 100 gal
Bridge Clearance to Hardtop 9'
Bridge Clearance to Radar 15'8"
CONSTRUCTION
Unsinkable
Lifetime hull warranty & 3 year component warranty
Variable deadrise deep-v hull
Patented closed molded RAMPCAP® construction process
NMMA certified
Self-bailing cockpit
No wood construction
High density, closed cell, structural foam flotation
Hull laminate - premium gel coat, vinyl-ester barrier and knitted bi-axle fiberglass
High density composite transom
Hull liner and deck mated perfectly for a rigid one-piece construction, adding to its long term durability
Hull liner completely finished inside
Molded-in diamond non-skid
Rigging troughs - molded-in and oversized for easy access
ABS backing used to receive self tapping screws and bolts
Aluminum framework - custom fabricated in-house meeting stringent standards, sand blasted then powder coated using premium marine grade materials
Heavy-duty bow tow eye
Gunwale boards - all hand laid and extra heavy duty
Wire harnesses - manufactured in-house using marine grade, tinned copper wire, high grade heat shrink connectors and waterproof Deutsch plugs
Torque spec tightening on all terminals
Circuit protection - circuit breakers or fuses protect all electrical circuits
Heavy-duty rub rail with 316 stainless steel insert and end caps
316 cast stainless steel and chrome plated fasteners for additional corrosion and stain resistance
All hardware bedded or gasketed to resist corrosion
Upholstery – extra heavy vinyl with acrylic top coat, Tenara thread, and anti-mildew backing – adhered to high density plastic backing (no wood) with flow through foam cushions
Bonding zinc plate
Heavy-duty, welded bow and stern eyes, bedded and sealed in polyurethane
Bronze high speed intake strainers

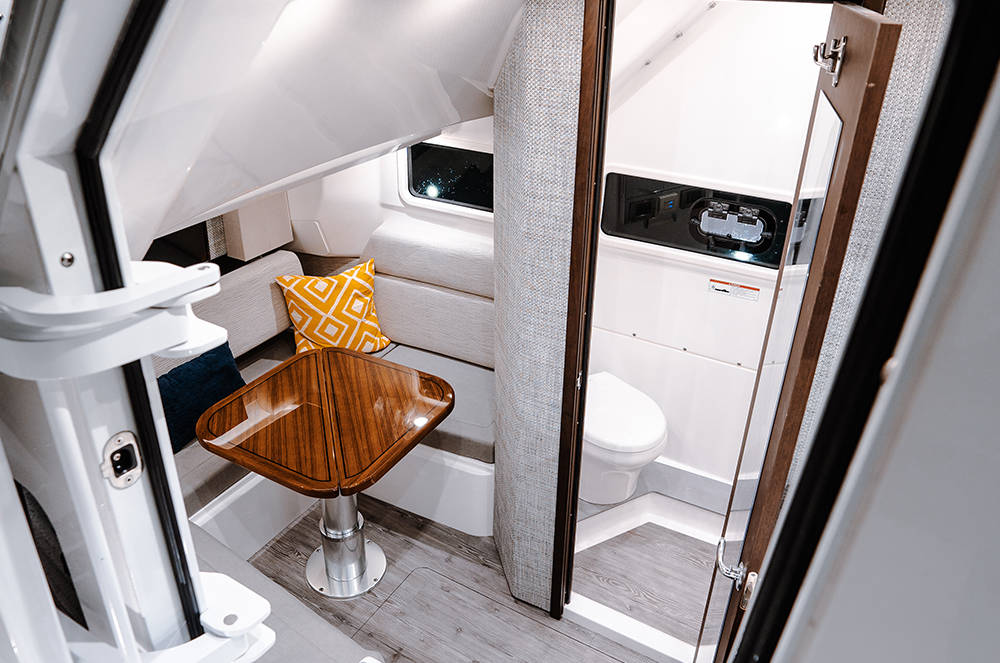

CABIN
U-shaped cushioned seating with actuating backrest
Storage beneath seating
High-low folding teak table that coverts to king berth
Galley with storage cabinets, solid surface top, glass bowl sink, microwave, refrigerator/freezer, storage drawers, and access to electronics
Wood grained stairs with finished wood treads and storage cabinet
Finished flooring with bilge access hatch
Pantograph cabin entry door
2Skylight
12K BTU air conditioner
110VAC 30A electrical system
LED lighting
32” flat screen TV with remote
AC/DC main distribution panel
Carbon monoxide & Smoke detector

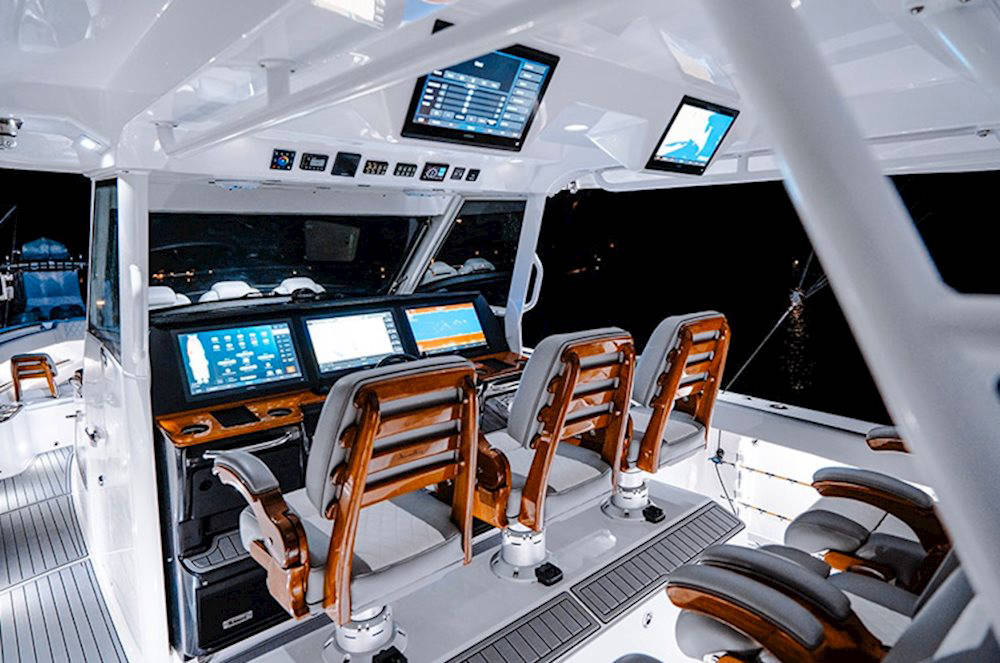

CONSOLE
Patented hydraulic sliding windshield with tempered glass and intelligent wiper & washer system
Oversized electronics mounting area for triple 22” flush mounted displays
Garmin digital switching system with touch screen system control
Recessed storage area with inductive cell phone chargers (2)
Teak helm dash
Compass mounted on centerline
Centerline mounted adjustable carbon fiber steering wheel
Wrapped stitched visor with recessed personal items storage area
Pull out personal items storage drawers (2)
Stainless steel handrails (2)
Stainless steel cup holders (4) with drainage
Release Marine teak ladderback helm seats with armrests mounted on SHOX rotating seat bases (3)
Helm air conditioning with adjustable discharge vents (4)
Molded-in footrest with mat
Anti-fatigue helm mat
Sliding drawer helm steps (3)

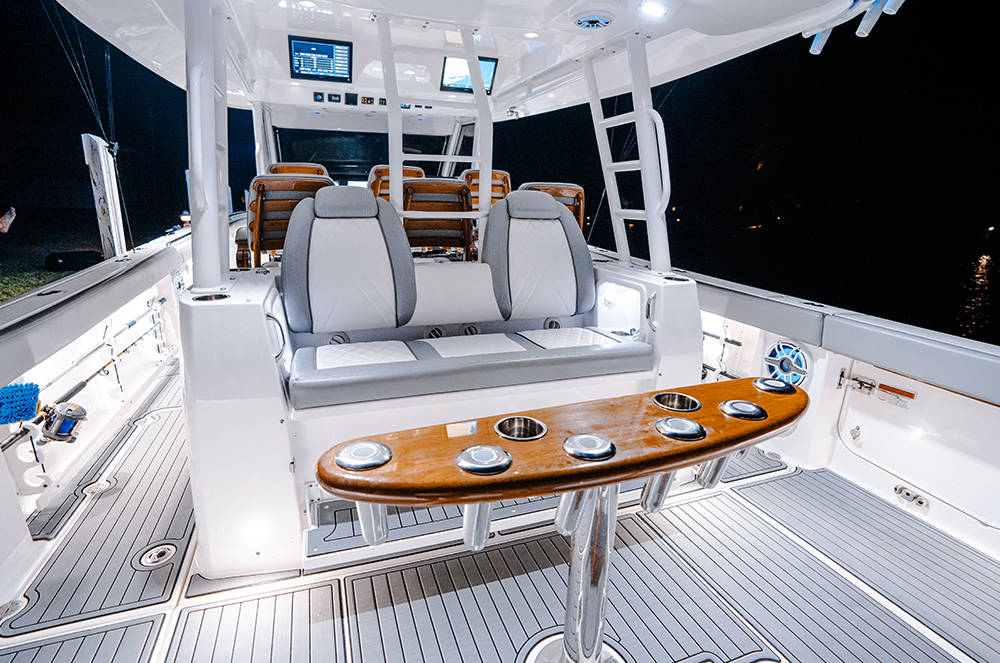

Forward facing triple lounger seat with armrests, cup holders, grab rails and inductive cell phone charger (2)
Vertical stainless steel rod holders (6) with drainage
Insulated 15 gallon storage compartment with lid, hardware, and drainage
DECK & COCKPIT
Stainless steel plow anchor 44LB with 475ft 5/8 - 8plait & 25ft 3/8 chain with swivel
Fresh & raw water washdown outlets in the anchor locker
Electric windlass with remote, dedicated tool storage, integrated through the stem anchor chute & stainless steel cleat
LED navigational lights
Stainless steel flush mounted rod holders bedded and through bolted (18)
Combination rod & cup holders (10)
Flush deck mounted electrically actuated table that converts into a casting platform

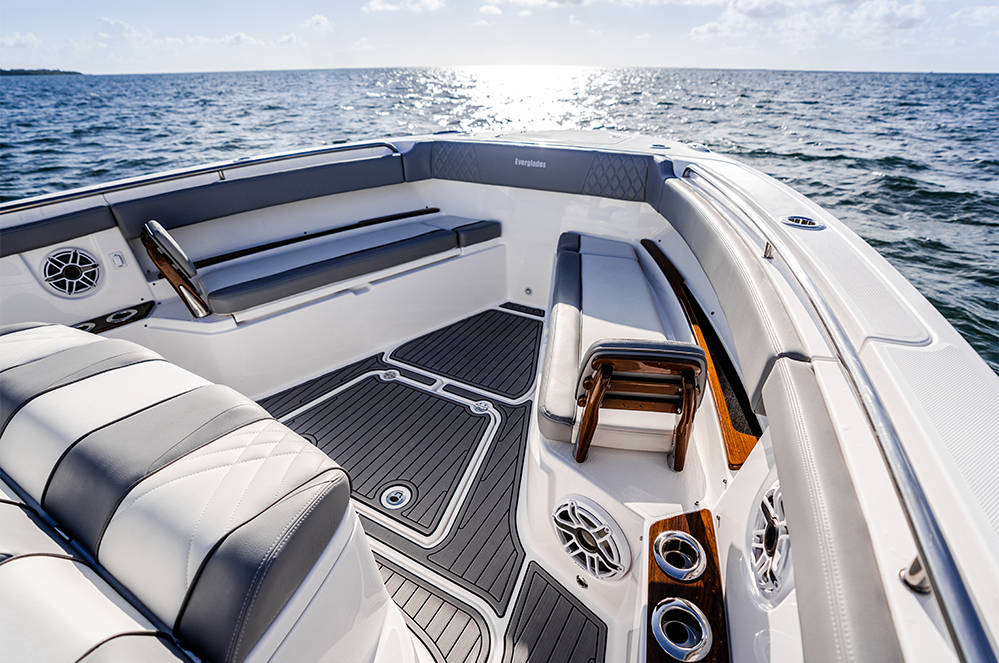

Cushioned bow seating with port & starboard removable teak ladderback backrests
Insulated bow seating storage tubs port & starboard with lids, hardware, lighting & drainage 30 gallons each
Bow seat-back storage pockets with storage recess
Low profile stainless steel bow rails
In gunnel storage compartments with doors (4), hardware, lighting & drainage, collapsible ladder with dedicated storage and dock line holders
10” pull-up cleats cast 316 stainless steel and through bolted (6)
Stainless steel quick release fender pins (6)
Coaming bolsters around the full perimeter of the deck
Stainless steel water, waste, & diesel deck fitting
Stainless steel gasoline fittings port & starboard
Port & starboard side access utility doors with integrated gate & oversized stainless steel hardware
Retractable boarding ladder at transom with stainless steel grab rail
Bilge access hatch with stainless steel hardware & drainage
Powder-coated toe rails (2)
Raw-water washdown
Fresh-water washdown
Oversized cockpit drains with stainless steel grates
Folding cockpit seats (3) across full beam of transom
Full spectrum LED lights
Premier audio package – Fusion 770 control head with bluetooth & JL M6 series LED speakers, includes JL amplifier & subwoofer
Single level cockpit with unobstructed 360 degree perimeter access
Insulated in-deck fish boxes with lid, hardware, lighting & macerator pump out (2) (22 gallons each)
Insulated in-deck forward fish box with lid, hardware, lighting & macerator pump out (120 gallons)
Insulated transom fish box with dividers, lid, hardware and drainage (2) (75 & 40 gallons)
Pressurized circulating live wells (2 at 50 gallons each) with redundant pump, lids with clear acrylic windows & hardware
Mezzanine tackle storage compartments port & starboard with doors, storage drawers, tackle trays, dedicated leader spool, tool storage & slide out trash can.
Under gunwale power ports - 30a (4)
Total rod holders (40)
Outrigger quick-cam cleats (2)
Gemlux® Collapsible carbon fiber outrigger (pair) - 22’ poles with Gemlux hardtop mounted bases

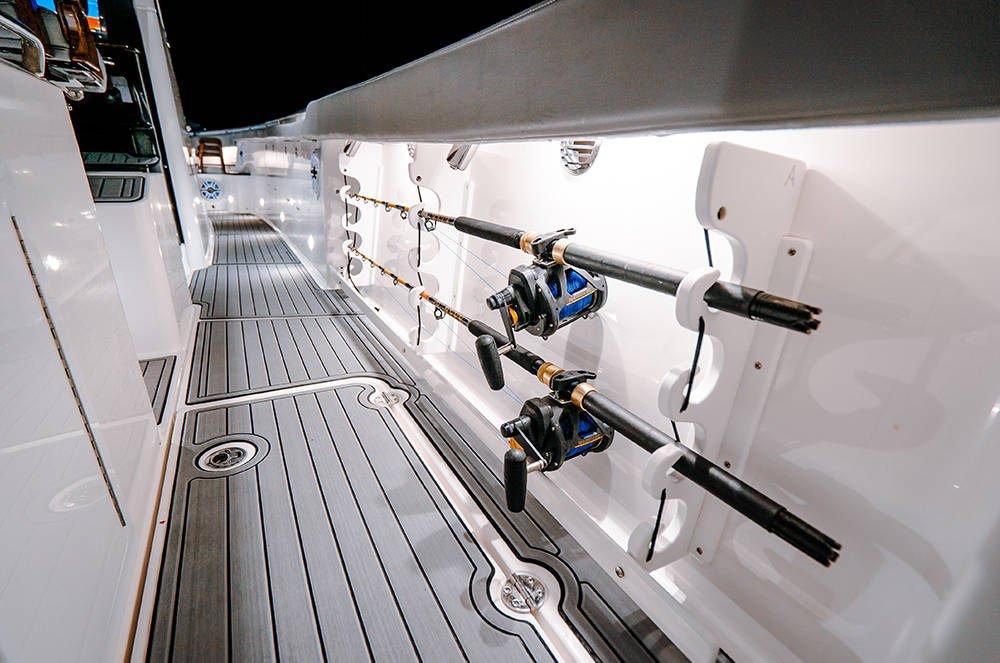

Under gunwale rod & gaff storage racks
Powder-coated toe rails (2)
Custom painted engines

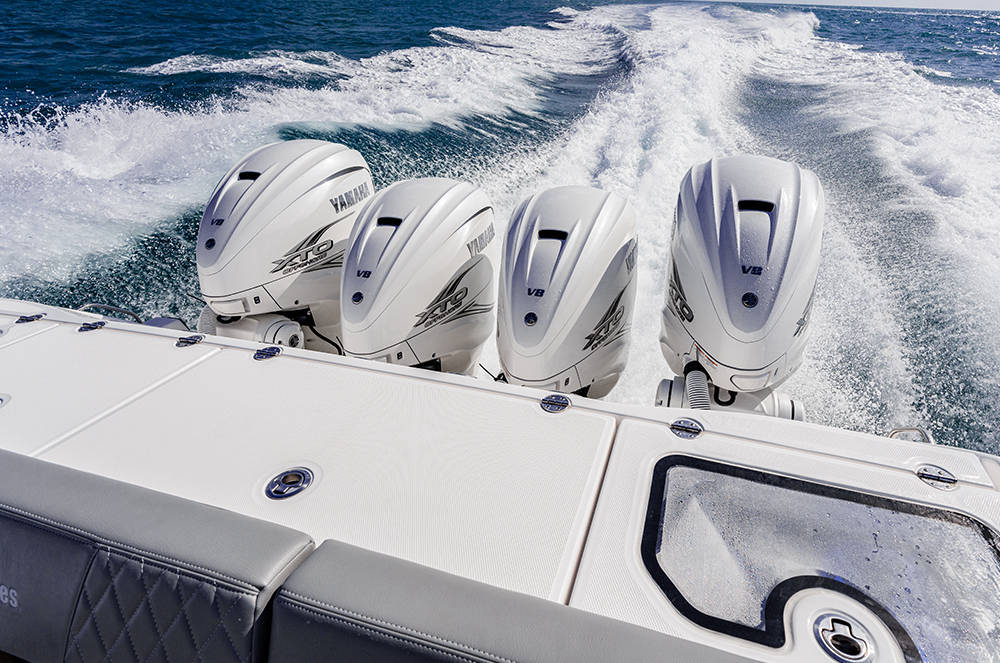

Quad Yamaha 425hp (standard with Helm Master EX)(standard Yamaha White)
Transom freezer package
Rod/Cup Holder Combos (4) - 2 AFT; 2 FWD
Rigid Light bar 54" (deletes spotlight)
Light Package - Hard Top & Upper station
Light Package - Hard Top
JL M6 Series LED Speaker Upgrade
Teak accent (bright finish) at helm area
Teak bow table (bright finish)
Teak ladder-back triple helm seat
Release Marine® Teak ladder back helm and second row seating upgrade
SeaDek flooring
Teak grate under console seat
Tower Mounted Marsh Tacky Outriggers
Cockpit rocket launcher - black, white or teak
Premium powder coating (matches gel coat color)
Black powder coating (Paints radar and satellite if chosen)

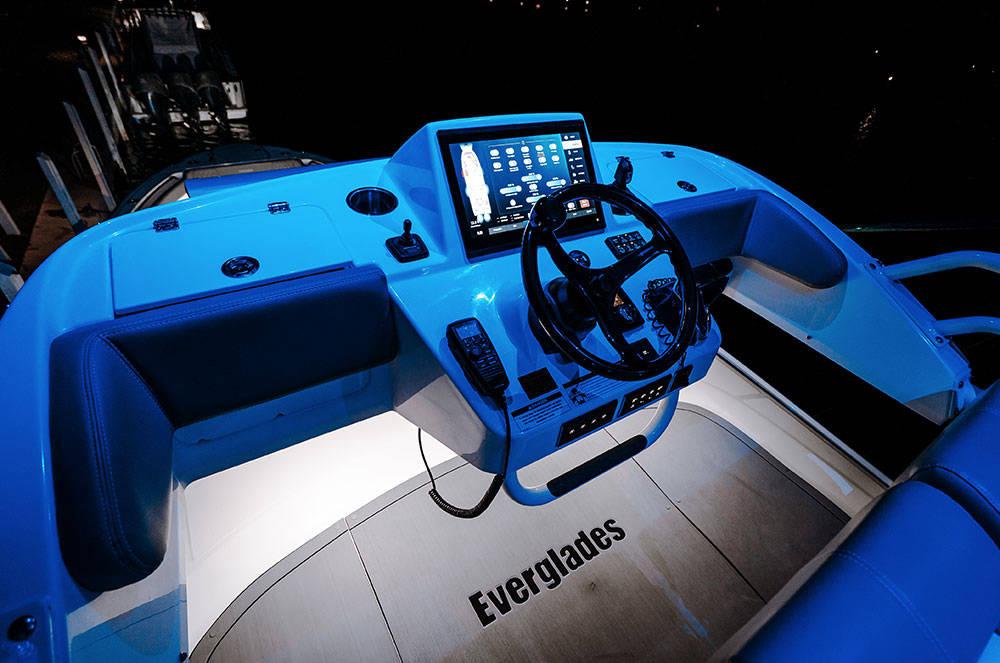

Full Upper station: With Yamaha Helm Master system, sun-top, (2) drink holders, folding helm seat bolsters, stainlesssteel grab rail, glove box, Garmin GHS 11 wired handset, Garmin 8616 Additional screen
CANVAS & UPHOLSTERY
Upholstery colors: solid white, almond accent, or flagstone accent
Canvas colors: black, blue, silver, tan, white
Canvas cover options: helm seat cover, forward console seat cover, cockpit cover, mooring cover & console cover
Mediterranean bow shade
Sure Shade: black, blue, silver, tan, white
Ice Blue, Sand, Sky Blue, Seafoam Green, Whisper Gray, Caribbean Blue, White (Standard no charge)
See your local dealer for an Everglades Awlgrip® paint chart
Gyroscopic stabilizer Seakeeper 6
Automatic bilge pump: aft (2) - forward (1) 3700 gph
Sump for gray-water system
High-water alarm
LED anchor light
LED navigation lights
LED courtesy lights
LED docking lights
Engine starting battery bank with charging system
House battery bank with charging system
Fuel tank gasoline - 683 gallons
Automatic engine freshwater flush system
Freshwater tank - 100 gallons
Zipwake trim tabs with automatic trim control (4)
Seablaze Quattro LED underwater lights (2)
Generator - 15kw diesel – with 30 gallon tank
50’ - 50 Amp shore power cord, plugs mounted at transom
Garmin Premium Package: VHF 315, Transceiver AIS 800, triple displays GPSMAP® 8622xsv chart plotter, Dual hardtop mounted 8616xsv chart plotter displays, B175 High Chirp Transducer, B175 Low Chirp Transducer, Radar Fantom 54, Auto Pilot GHP Reactor Corepack for Yamaha Helm Master system
Recessed, hull-mounted Pocket Transducer PM265LM Chirp Airmar w/ Deep Water Capabilities (replaces Garmin B175 High and Low Chirp Transducers when Premium Electronics Package is selected)
GXM 54 SiriusXM marine weather receiver & audio (requires subscription)
KVH5 Satellite TV (requires subscription) includes receiver, antenna, Direct TV, connection box with remote wired to Garmin
Quad 425XTO
Freezer package for mezzanine seat, port aft fish box, stbd aft box (stbd aft box freezer plate deletes when transom rigging station opt is chosen)
Freezer plate package for mezzanine seat only
Light bar, 18” low profile (3 total – deletes standard spotlight)
Black powder coating (paints radar and satellite if chosen)
Custom powder coating (gel coat colors only)
Teak accents: forward console lounge, forward bow seating, and dive doors
Cockpit rocket launcher – teak (high gloss) with stainless steel base
Grill, electric with actuated high/low storage drawer & solid surface – (replaces starboard live well)
SeaDek flooring
Bow thruster
Gemlux® Internal carbon fiber outrigger (pair) - 22’ poles with Gemlux hardtop mounted bases
Transom rigging station actuated high/low with sink & storage (replaces stbd aft box & deletes freezer plate for the box if freezer plate package option is selected)

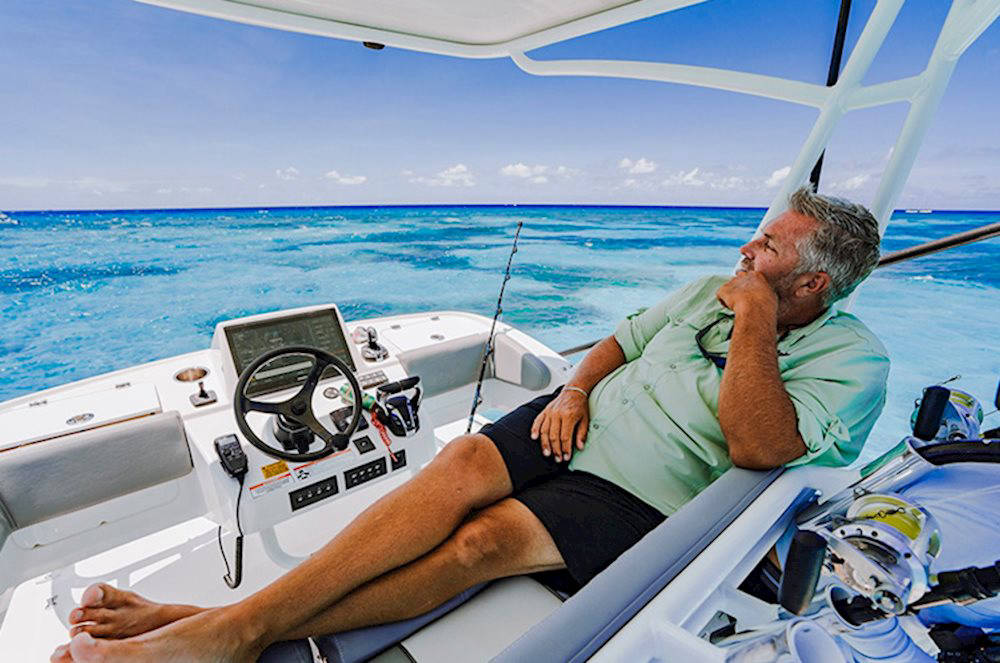

Full upper station – includes Yamaha Helm Master system, sun-top, drink holders, folding helm seat bolsters (3), stainless steel grab rail, glove box, light package, Garmin GHS 11 wired handset, Garmin 8616 additional screen, GHC 20 marine auto pilot control unit, gas assist shocks, helm anti-fatigue mat
